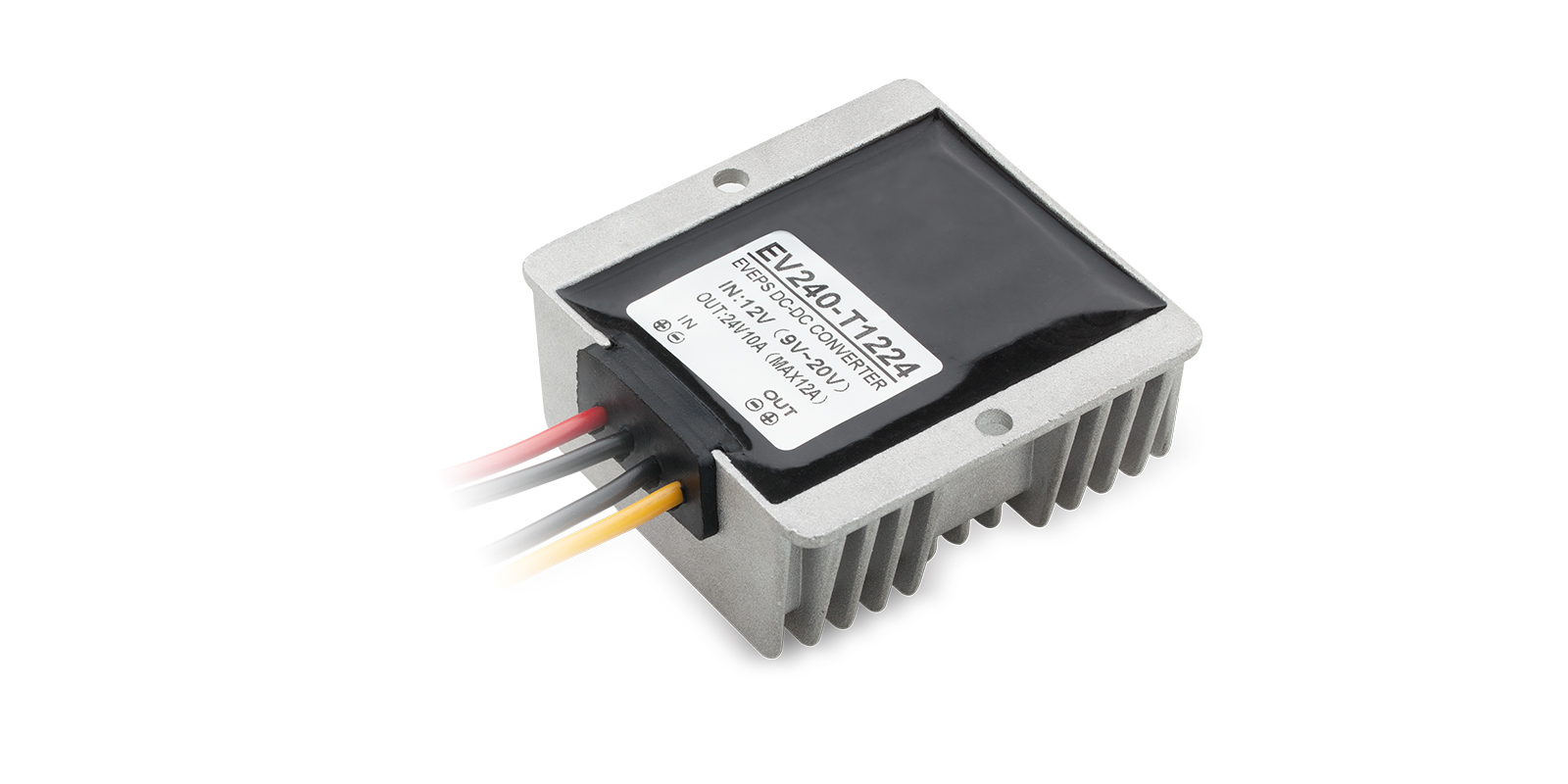

DC 12V to 24V Step Up Regulator Power Supply Voltage Converter

IN: 12V (9V-20V)
OUT: 24V / 10A (MAX12A)

•Description
A voltage converter, also known as a power converter or voltage transformer, is an electric power conversion device which is used to change the electrical output of a power source.
It helps to change one level of DC into another level of DC, to step up the voltage from a lower voltage source to a higher voltage. This XTRONS converter can change 12V (9V-20V) to 24V to match the loads to the power supply.
It is ideal for use in a wide range of applications including vehicles, security system, hospital equipment and telecommunications, etc.

•Features

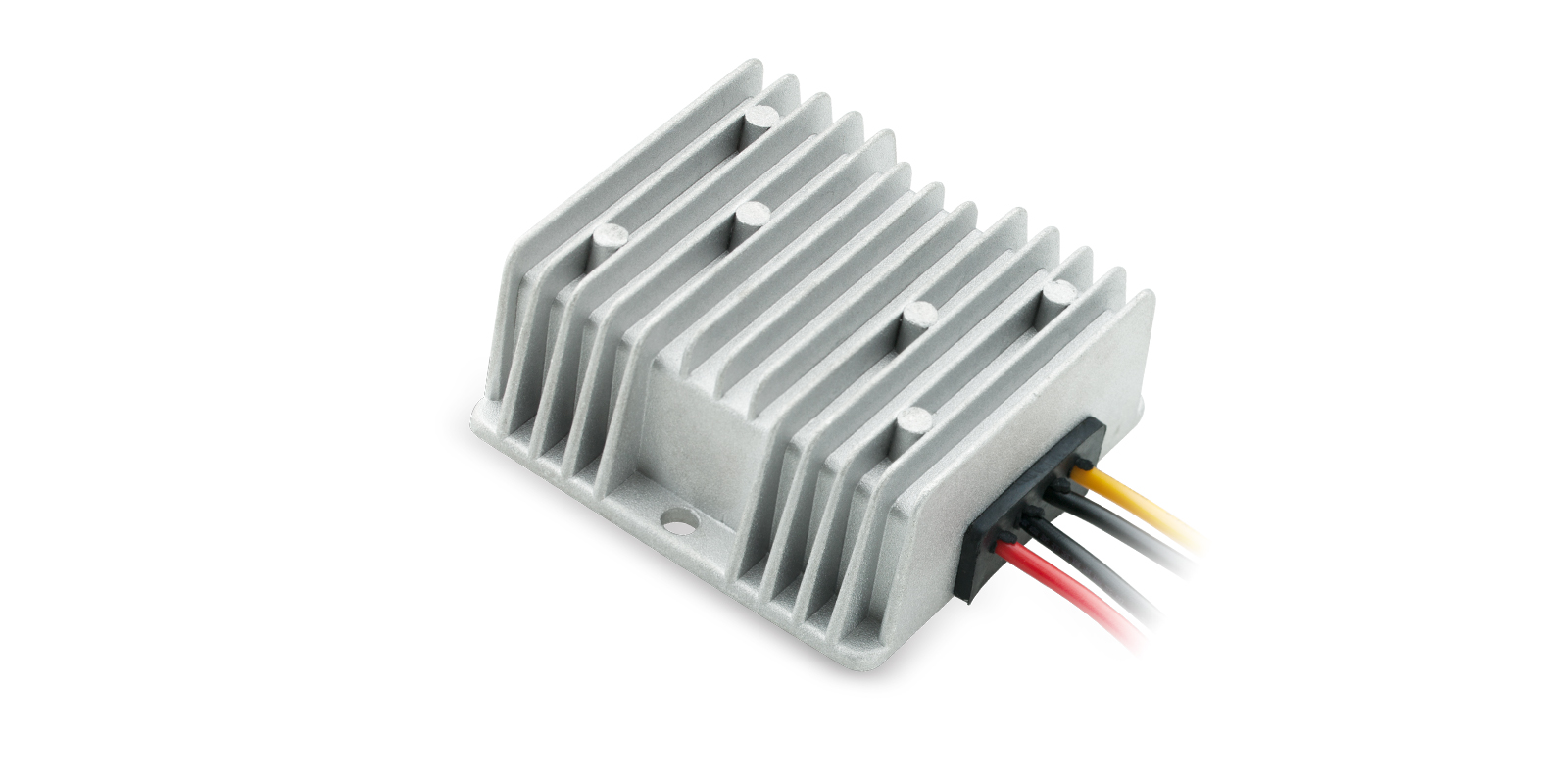

Durable - Aluminum alloy material
Wide range of input voltage (9V-20V)
High conversion rate and low calorific value
Stability and high temperature resistance
Waterproof, quake-proof, moisture-proof and dust-proof
Built-in over-voltage, under-voltage, overload, over-heat and short circuit protection

•Wiring
Red: Input (+)
Black: Input (-)
Yellow: Output (+)
Black: Output (-)
